Description:
Horizontal 110, international cycle gear, Youli Keihin carburetor, maintenance-free battery, front disc brake, rear drum brake, front and rear double shock absorbers, front and rear aluminum wheels, ordinary mechanical instruments, road tires.
Specifications:
|
Item
|
Parameter
|
|
Dimensions (Length x Width x Height)
|
1860×690×1120mm
|
|
Seat Height
|
780mm
|
|
Wheelbase
|
1240mm
|
|
Minimum Ground Clearance
|
120mm
|
|
Maximum Load
|
150kg
|
|
Steering Angle
|
Left 41; Right 45
|
|
Side Stand Tilt Angle
|
12
|
|
Ride Capacity
|
2 Person
|
|
Dry Weight
|
89kg
|
|
Fuel Tank Capacity
|
3.5L
|
|
Front Braking System
|
Disc brakes
|
|
Rear Braking System
|
Drum brakes
|
|
Front Tire Size
|
2.50/17
|
|
Rear Tire Size
|
2.75/17
|
|
Battery Size
|
12V/5Ah
|
|
Engine Type
|
Single cylinder, air-cooled, four-stroke
|
|
Engine displacement
|
106.7
|
|
Bore x stroke
|
52.4×49.5
|
|
Compression ratio
|
9.1:1
|
|
Maximum power
|
5.2/8000(kw/r/min)
|
|
Maximum torque
|
7.2/5000(N·m/r/min)
|
|
Maximum speed
|
80Km/h
|
|
Start-up acceleration
|
14S
|
|
Overtaking acceleration
|
13S
|
|
Lubrication method
|
Pressure, Splash
|
|
Oil volume
|
0.9L
|
|
Clutch type
|
Multi-plate wet clutch, automatic
|
|
Ignition method
|
CDI
|
|
Spark plug
|
A7TC
|
|
Starting method
|
Electric kick starter
|
|
Transmission method
|
Chain drive
|
|
Final gear ratio
|
14:36
|

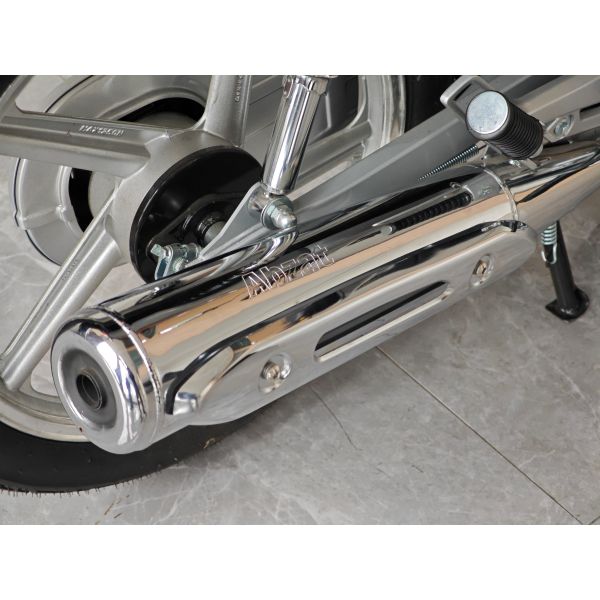

Product Showcase:
Packaging parameters:
|
|
SKD
|
CKD
|
|
Package Dimensions (Length x Width x Height)
|
1700×460×830mm
|
1260×760×380mm
|
|
Gross Weight
|
105kg
|
75kg
|
|
Quantity
|
105(40HQ)
|
170(40HQ)
|
Frequently Asked Questions:
Q1. About us:
A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.
Q2. Payment Terms:
A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.
Q3. Delivery Timeline:
A: Depending on the order quantity, usually around 45 working days
Q4. Customization:
A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.
Q5. After-sales Service:
A: We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
